Thread: 3.14.00 - MAF Tracking | Interpolation | VQ Table Graphing

A few of you guys have asked for an interpolation function, so here it is with a few additional things to make MAF curve tuning a bit easier.

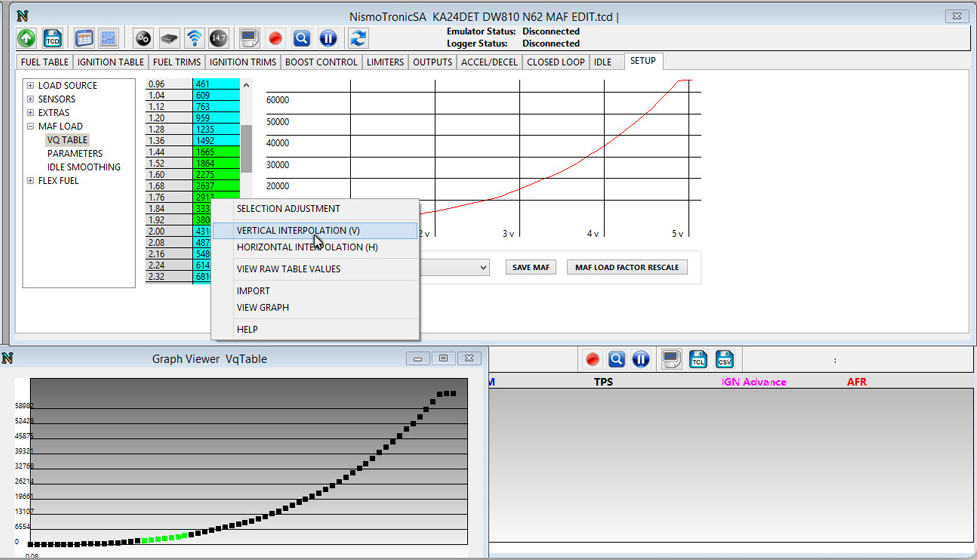

1) Vertical and Horizontal linear interpolation can be applied to all parameter and main fuel/ignition tables.

2) MAF VQ tracking has made it's way back from an ancient version of the application and indeed does come in handy for this!

3) You can now view the VQ table in the regular graph viewer window which can be expanded to give you more resolution when trying to smooth the VQ table.

A few uses for the interpolation include smoothing the VQ table when trying to create a custom MAF transfer function. This takes a bunch of time out of trying to calculate the exact change needed to smooth out your function within 2-3 data points.

It also can be used to help smooth rows/columns when in speed density mode.

These updates will be available shortly in version 3.14.00

This fits nicely because I understand more of NEMU. (and my feet are barely wet)

Superb! I just got a 3bar MAP sensor & IAT sensor in the mail, time to convert to speed density!

where did the rad fan 1 / 2 on / off option go? i swear it was in the setup tab > extras > diagnostics but i dont see it..

it makes it really easy to test if they work that way

That was never an option with this software.

You can however turn them on/off with a general output.

Hmm ok ill try that.. my buddys ect sensor os going bad we believe so the rad fan isnt coming on at the right temps lol

very helpfull update
